Product Description
The injection anchor sleeve for particularly sparing mortar usage in perforated brick masonry

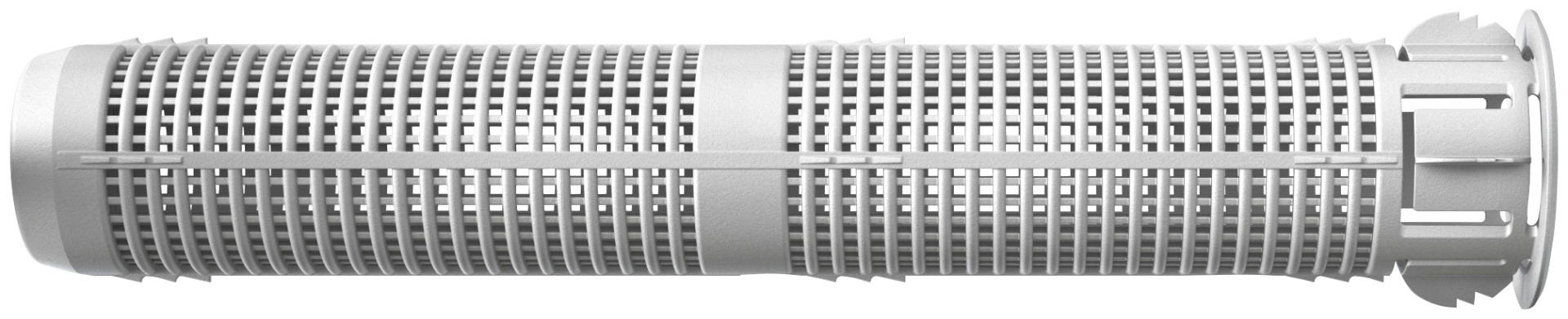

The fischer injection anchor sleeve FIS H K is the system component for the professional, mortar-saving installation of the threaded rod FIS A or internal threaded anchor FIS E in perforated brick masonry. The fischer injection mortars FIS V, FIS VW HIGH SPEED, FIS VS LOW SPEED, FIS VL, FIS Green, FIS P Plus, and FIS P can be used with it. The optimised grating structure reduces the use of injection mortar. When the threaded rod and internal threaded anchor are installed, the mortar is pressed through the grating structure and creates a form fit with the perforated brick. This directs the load into the building material. Setting takes place in a pre-positioned installation. You can use the injection anchor sleeve to bridge non-load-bearing layers. The approvals of the various injection mortars must be observed.
Advantages
- The grating structure of the FIS H K anchor sleeve is adapted for the injection mortars FIS V Plus,FIS V,FIS VL, FIS Green and FIS P Plus, and ensures sparing mortar use with the best interlock.
- The centring blades perfectly align the anchor in the anchor sleeve, and allow for use with various threaded rod diameters.
- The barbed hooks secure the anchor sleeve in the drill hole and allow for a trouble-free overhead installation.
- The geometry of the anchor sleeves allows for the bridging of non-bearing layers for a simple and convenient installation.
| Variant | ETA-approval | Drill diameter | Min. drill hole depth | Effect. anchorage depth |
|---|---|---|---|---|
| FIS H 12 x 50 K | Yes | 12 [mm] | 60 [mm] | 50 [mm] |
| FIS H 12 x 85 K | Yes | 12 [mm] | 95 [mm] | 85 [mm] |
| FIS H 16 x 85 K | Yes | 16 [mm] | 95 [mm] | 85 [mm] |
| FIS H 16 x 130 K | Yes | 16 [mm] | 95 [mm] | 85 [mm] |
| FIS H 20 x 85 K | Yes | 20 [mm] | 140 [mm] | 110 [mm] |
| FIS H 20 x 130 K | Yes | 20 [mm] | 140 [mm] | 110 [mm] |
| FIS H 20 x 200 K | Yes | 20 [mm] | 210 [mm] | 180 [mm] |
| FIS Set 18 x 130/200 M12/200 | Yes | 18 [mm] | — [mm] | 130 [mm] |
| FIS Set 18 x 130/200 M12/200 R | Yes | 18 [mm] | — [mm] | 85 [mm] |
| FIS HK 12 x 85 K NV | Yes | 12 [mm] | 95 [mm] | 85 [mm] |
| FIS HK 16 x 85 B | Yes | 16 [mm] | — [mm] | 85 [mm] |
| FIS HK 16 x 85 K NV | Yes | 16 [mm] | 95 [mm] | 85 [mm] |
| FIS HK 16 x 130 K NV | Yes | 16 [mm] | 140 [mm] | 130 [mm] |
| FIS HK 16 x 130 B | Yes | 16 [mm] | 140 [mm] | 130 [mm] |
| FIS H 18 x 130/200 K | Yes | 18 [mm] | 140 [mm] | 130 [mm] |
| FIS HK 20 x 85 B | Yes | 20 [mm] | 95 [mm] | 85 [mm] |
| FIS HK 20 x 85 K NV | Yes | 20 [mm] | 95 [mm] | 85 [mm] |
| FIS H 22 x 130/200 K | Yes | 22 [mm] | 140 [mm] | 130 [mm] |
Available Product Variants
| Variant | ETA-approval | Drill diameter | Min. drill hole depth | Effect. anchorage depth |
| FIS H 12 x 50 K | Yes | 12 [mm] | 60 [mm] | 50 [mm] |
| FIS H 12 x 85 K | Yes | 12 [mm] | 95 [mm] | 85 [mm] |
| FIS H 16 x 85 K | Yes | 16 [mm] | 95 [mm] | 85 [mm] |
| FIS H 16 x 130 K | Yes | 16 [mm] | 140 [mm] | 110 [mm] |
| FIS H 20 x 85 K | Yes | 20 [mm] | 95 [mm] | 85 [mm] |
| FIS H 20 x 130 K | Yes | 20 [mm] | 140 [mm] | 110 [mm] |
| FIS H 20 x 200 K | Yes | 20 [mm] | 210 [mm] | 180 [mm] |
| FIS Set 18 x 130/200 M12/200 | Yes | 18 [mm] | — [mm] | 130 [mm] |
| FIS Set 18 x 130/200 M12/200 R | Yes | 18 [mm] | — [mm] | 130 [mm] |
| FIS HK 12 x 85 K NV | Yes | 12 [mm] | 95 [mm] | 85 [mm] |
| FIS HK 16 x 85 B | Yes | 16 [mm] | — [mm] | 85 [mm] |
| FIS HK 16 x 85 K NV | Yes | 16 [mm] | 95 [mm] | 85 [mm] |
| FIS HK 16 x 130 K NV | Yes | 16 [mm] | 140 [mm] | 130 [mm] |
| FIS HK 16 x 130 B | Yes | 16 [mm] | 140 [mm] | 130 [mm] |
| FIS H 18 x 130/200 K | Yes | 18 [mm] | 140 [mm] | 130 [mm] |
| FIS HK 20 x 85 B | Yes | 20 [mm] | 95 [mm] | 85 [mm] |
| FIS HK 20 x 85 K NV | Yes | 20 [mm] | 95 [mm] | 85 [mm] |
| FIS H 22 x 130/200 K | Yes | 22 [mm] | 140 [mm] | 130 [mm] |
Applications
- Anchorings in perforated brick masonry with injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green
Building materials
Approved for:
- Vertically perforated brick
- Hollow blocks made from lightweight concrete
- Hollow blocks made from concrete
- Perforated sand-lime brick
- Solid sand-lime brick
- Solid brick
Also suitable for:
- Hollow pumice slabs
- Slabs made of hollow brick and other perforated brick
- Solid pumice and other solid building materials
* You can find detailed information on building materials in the registration document.
Permission
- ETA-10/0383
- ETA-11/0419, ETAG 029
- ETA-14/0471, ETAG 029
- ETA-15/0263
- DoP 0189
- DoP 0195
- DoP No. 0026
- DoP No. 0126
Assembly Insturction
Functionality
- The system can be used with any of the following injection mortars:FIS V Plus, FIS VW Plus High Speed, FIS VS Plus Low Speed, FIS V, FIS VL, FIS Green or FIS P Plus. FIS P can be used but does not have approvals.
- The system is suitable for pre-positioned installation when combined with injection anchor sleeves and threaded rods FIS A or internal threaded anchors FIS E.
- The anchor sleeve is placed in the drill hole, and filled with injection mortar from the anchor sleeve base.
- Turning in the anchor causes the mortar to be pushed through the anchor sleeve's grating structure, so that it fits the base material perfectly. The load is borne by the interlock.
