Product Description
Anchor sleeve with net for use in masonry
The Fischer injection anchor sleeve with net FIS H N is a system component for use with the Fischer injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green in perforated brick, masonry which is not approval-relevant. The perforated sleeve is placed in the drill hole and filled with injection mortar from the base of the anchor sleeve. When the threaded rod or internal threaded anchor is installed, the mortar is pressed through the grid structure and creates a form fit with the perforated brick. This directs the load into the building material.
Available Product Variants
Advantages
- The net structure of the anchor sleeve allows for uniform distribution of mortar in the drill hole and thus for a secure hold.
| VARIANT | DRILL DIAMETER | MIN. DRILL HOLE DEPTH | EFFECT. ANCHORAGE DEPTH | FILL QUANTITY PER SLEEVE |
|---|---|---|---|---|
| FIS H 16 x 85 N | 16 [mm] | 95 [mm] | 85 [mm] | 15 [Skt] |
| FIS H 18 x 85 N | 18 [mm] | 95 [mm] | 85 [mm] | 17 [Skt] |
| FIS H 20 x 85 N | 20 [mm] | 95 [mm] | 85 [mm] | 18 [Skt] |
Application and Permission
Applications
- Anchorings in perforated brick masonry with injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green without approval
Building materials
Suitable for:
- Vertically perforated brick
- Hollow blocks made from lightweight concrete
- Hollow blocks made from concrete
- Perforated sand-lime brick
- Solid sand-lime brick
- Solid brick
- Hollow pumice slabs
- Slabs made of hollow brick and other perforated brick
- Solid pumice and other solid building materials
* You can find detailed information on building materials in the registration document.
Assembly Instructions
Functionality

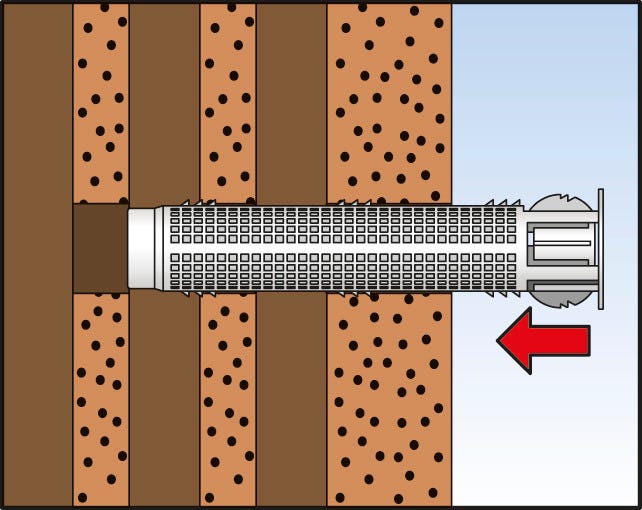

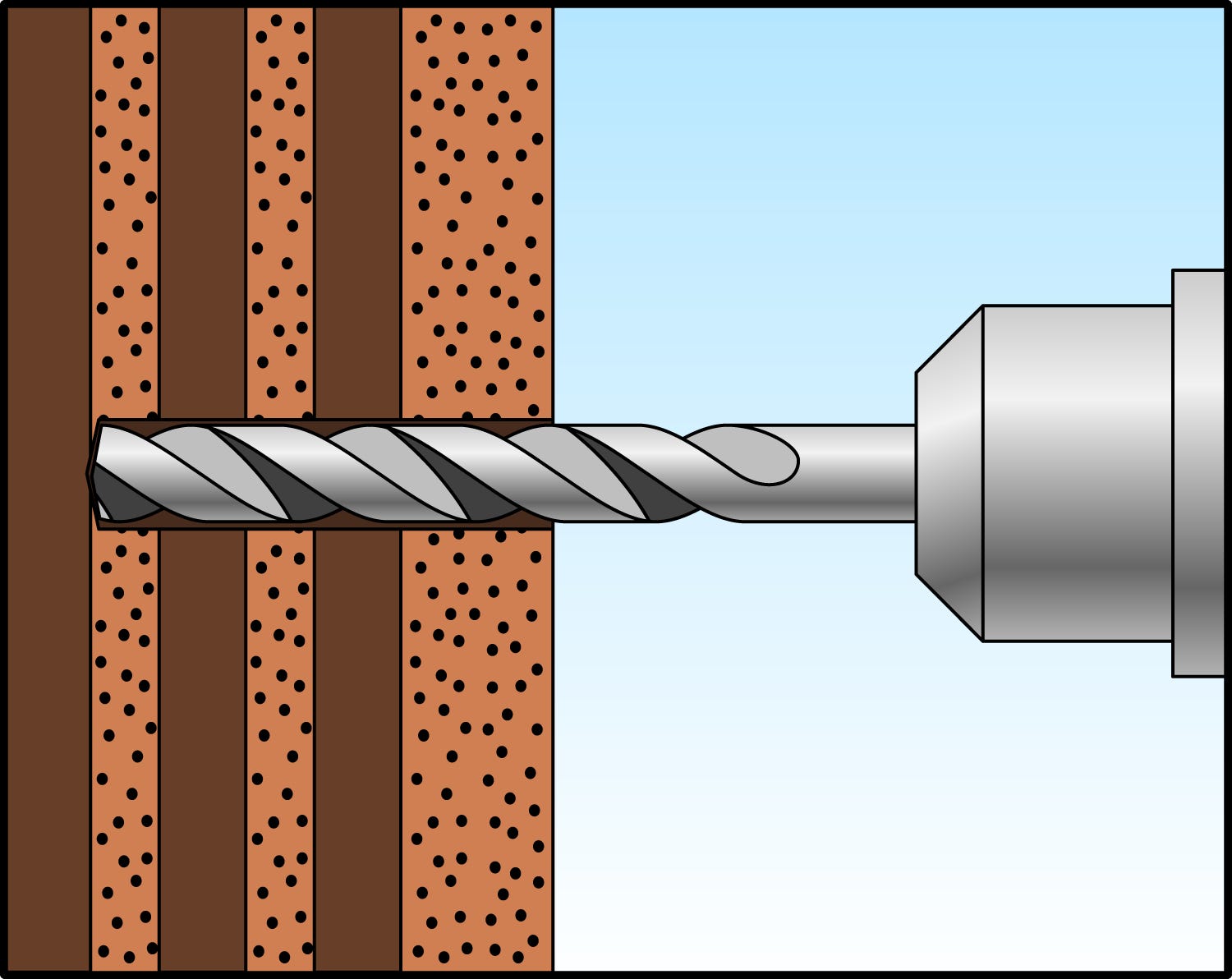

- The anchor sleeve is placed in the drill hole and filled with injection mortar from the anchor sleeve base.

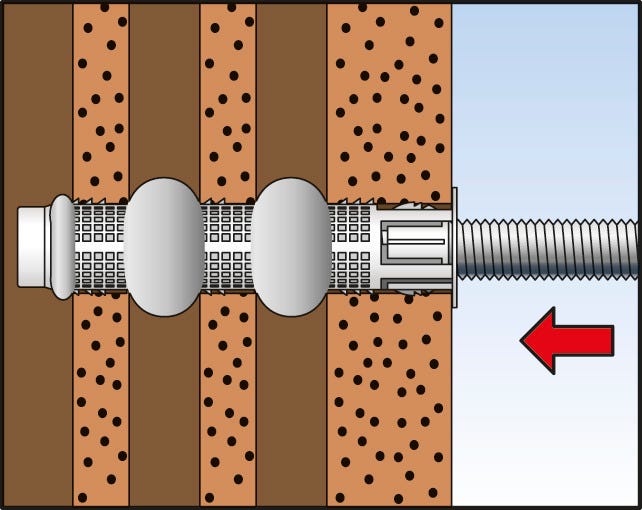

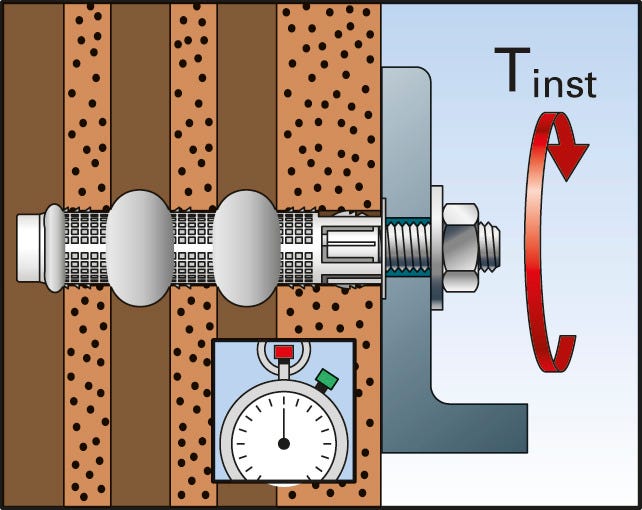

- Turning in the anchor causes the mortar to be pushed through the anchor sleeve's grating structure so that it fits the base material perfectly.
- The load is borne by the interlock.
