Hammerfix


Product Description

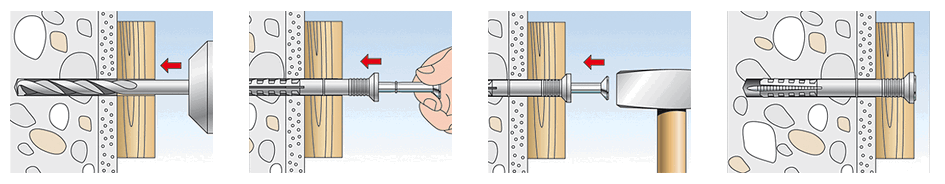

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a nail screw made from zinc-plated or stainless steel. These are pre-mounted for a fast installation process. The Hammerfix is inserted through the attachment part in a time-saving push-through installation. When the nail screw is hammered in, the plug sleeve expands and creates a secure anchoring in the building material. The fischer Hammerfix N-S with countersunk head is ideal for the fixing of wood constructions, plaster and wall connections, and cable and pipe clips in all building materials.

To buy this product CLICK HERE

Advantages

  • The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.
  • The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.
  • Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.
  • The wide range of diameters and usage lengths provides the correct plug for every fixing.

Applications

• Lighting • Substructures made of wood • Wall connection or plaster profiles • Cable and pipe clips • Perforated tapes • Signs

Functioning

  • Suitable for push-through installation.
  • When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
  • Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.

Building Materials

  • Concrete
  • Solid sand-lime brick
  • Building brick
  • Natural stone
  • Solid brick made from lightweight concrete
  • Aerated concrete
  • Solid panel made from gypsum
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Hollow blocks made from lightweight concrete

Documents For Download

Hammerfix_Load_Table.pdf
